Grounding Module | High-Efficiency Earthing Solution for Diverse Grounding Systems
The full range of grounding modules is specially designed to cope with diverse soil environments. It can effectively reduce grounding resistance and ensure long-term performance stability. It helps you calmly cope with grounding challenges in the power, lightning protection and industrial fields, and achieve excellent performance in safety and reliability.
⊙ Technical Specifications
| Part No. | Dimensions | Weight | Room temperature resistivity | Frequency grounding resistance (ρ=400Ω·m) (Ω) | Shape |
| (mm) | (kg) | (Ω·m) | |||
| HD-MS10/50 | Φ100×500 | 6 | ≤4.5 | 12 | Cylindrical |
| HD-MS15/80 | Φ150×800 | 20 | ≤4.0 | 7 | Cylindrical |
| HD-MS26/100 | Φ260×1000 | 50 | ≤3.5 | 4 | Cylindrical |

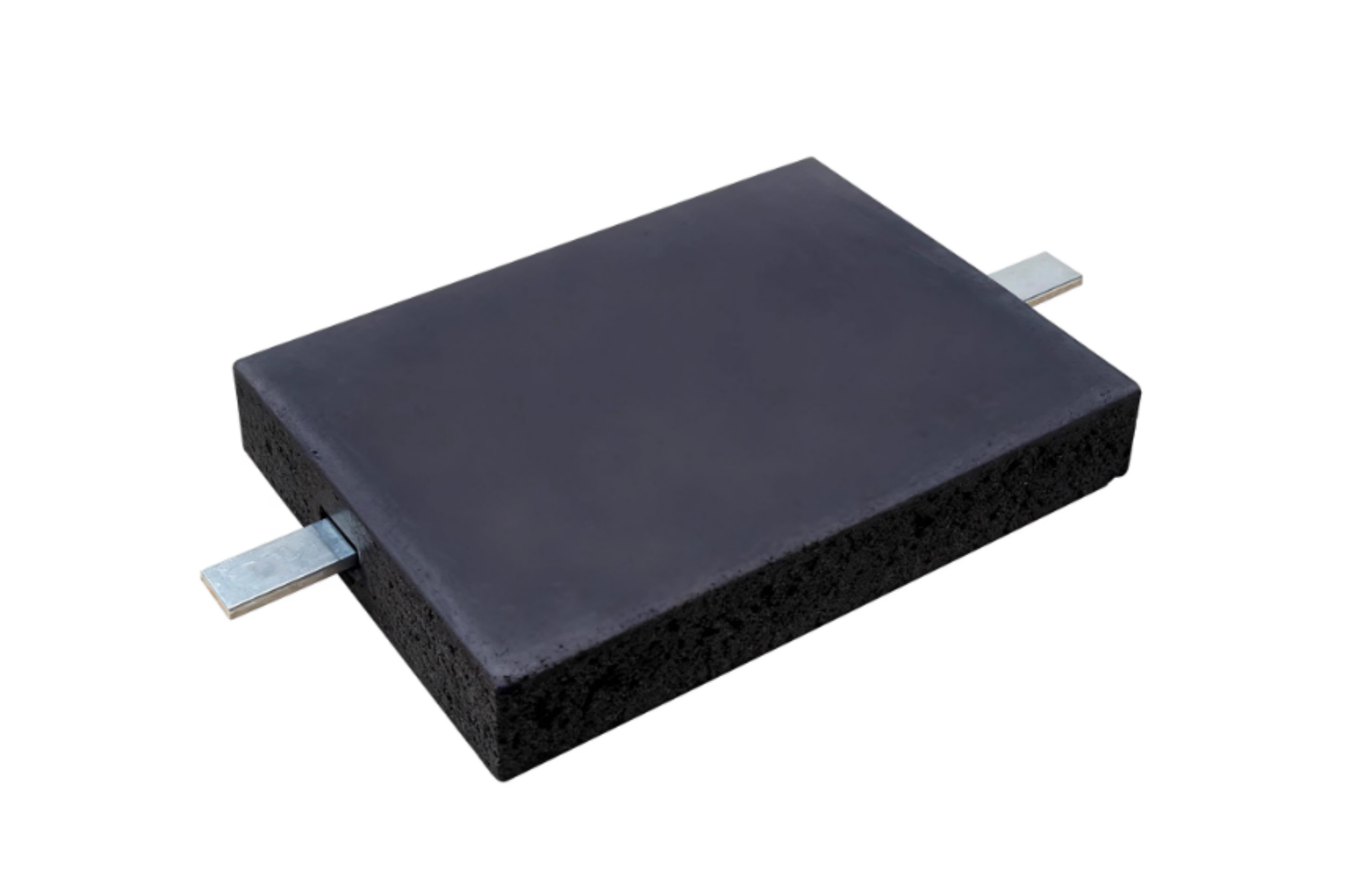

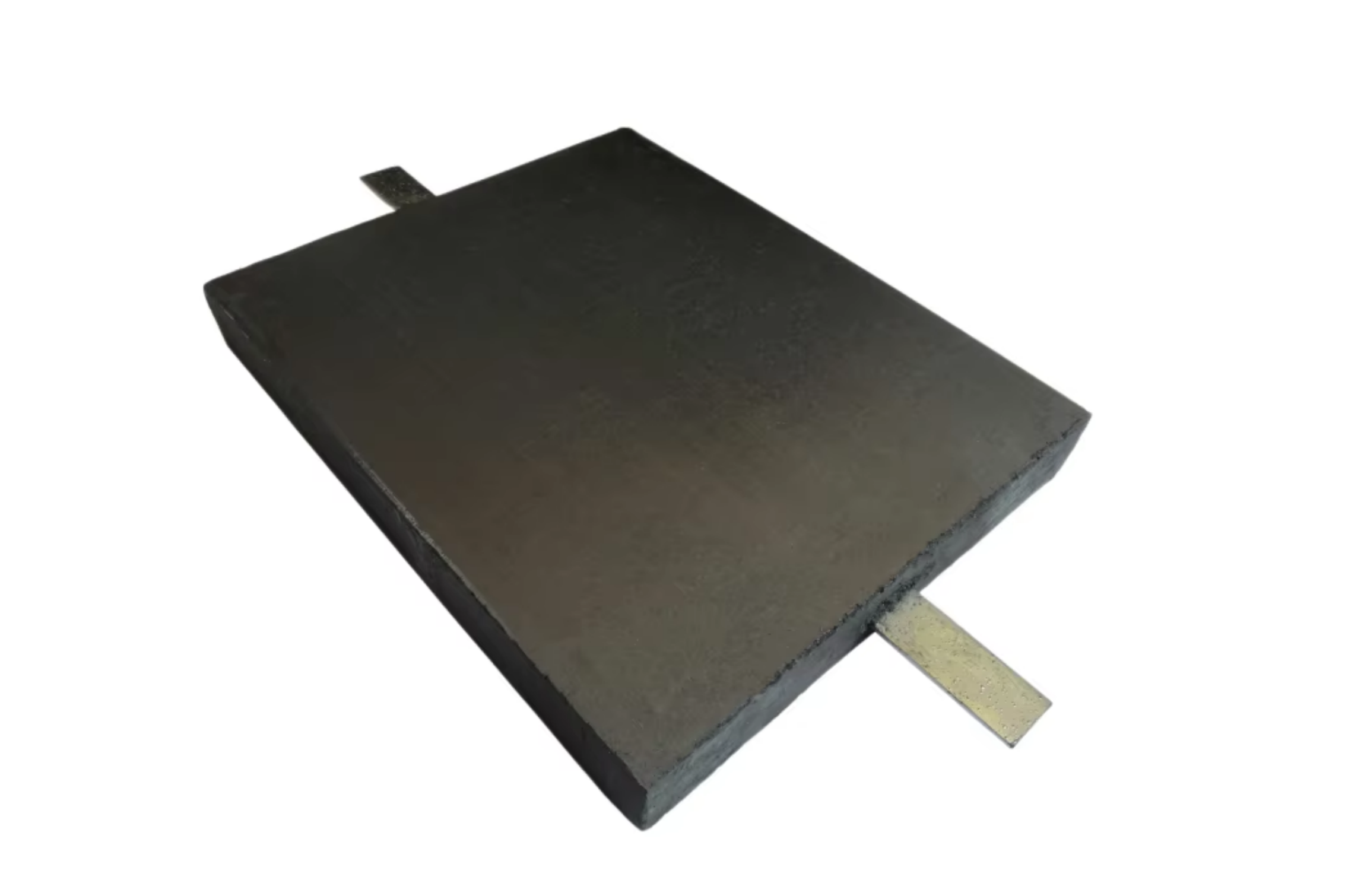

| HD-MSS0/40/6 | 500×400×60 | 20 | ≤3.0 | 6 | Plate-shaped |
⊙ Core Advantage
· Low resistivity and ground resistance
The normal resistivity is as low as ≤3.0 Ω·m, and the power frequency grounding resistance can reach 4 Ω, effectively reducing the system grounding resistance and improving the reliability of the grounding network.
· Various specifications selection

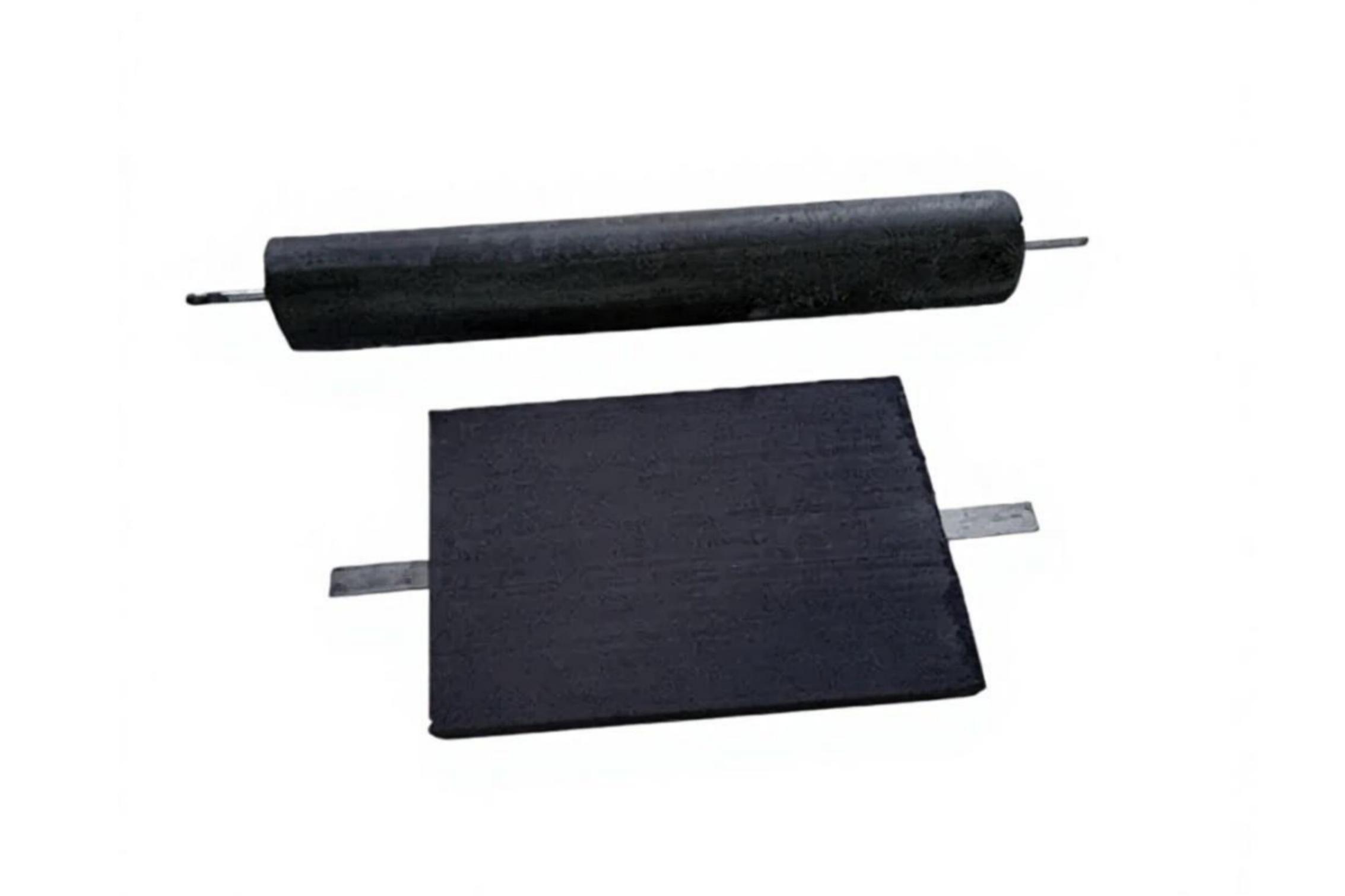

Two types of cylindrical and plate structures are available to adapt to different installation conditions: the cylindrical shape is suitable for deeply buried soil, and the plate shape is suitable for shallow or narrow spaces.
· High durability and long-term stability
Tolerates various complex soil environments and has long-lasting performance without degradation. It not only meets long-term fixed grounding needs, but also is suitable for temporary grounding projects.
⊙ Application Scenarios
· Power system
It is widely used in substations, distribution networks and transmission lines, providing key grounding guarantee for stable operation of power and effective lightning protection.
· Construction and infrastructure
Suitable for residential buildings, commercial buildings, public buildings, railways, airports and other places to establish safe lightning protection and electrical grounding.
· Industrial facilities
It is common in manufacturing factories, chemical parks and heavy machinery areas. It provides reliable grounding to prevent equipment damage and ensure operation safety.
· New energy projects
It is especially suitable for photovoltaic power stations, wind turbines, energy storage systems and other scenarios that require extremely high grounding performance to ensure efficient and safe operation of the system.
If your project requires an efficient, durable and adaptable grounding solution, our family of grounding modules will provide excellent performance in a variety of scenarios. Welcome to contact our team to choose the most suitable model for you or discuss custom configurations.
