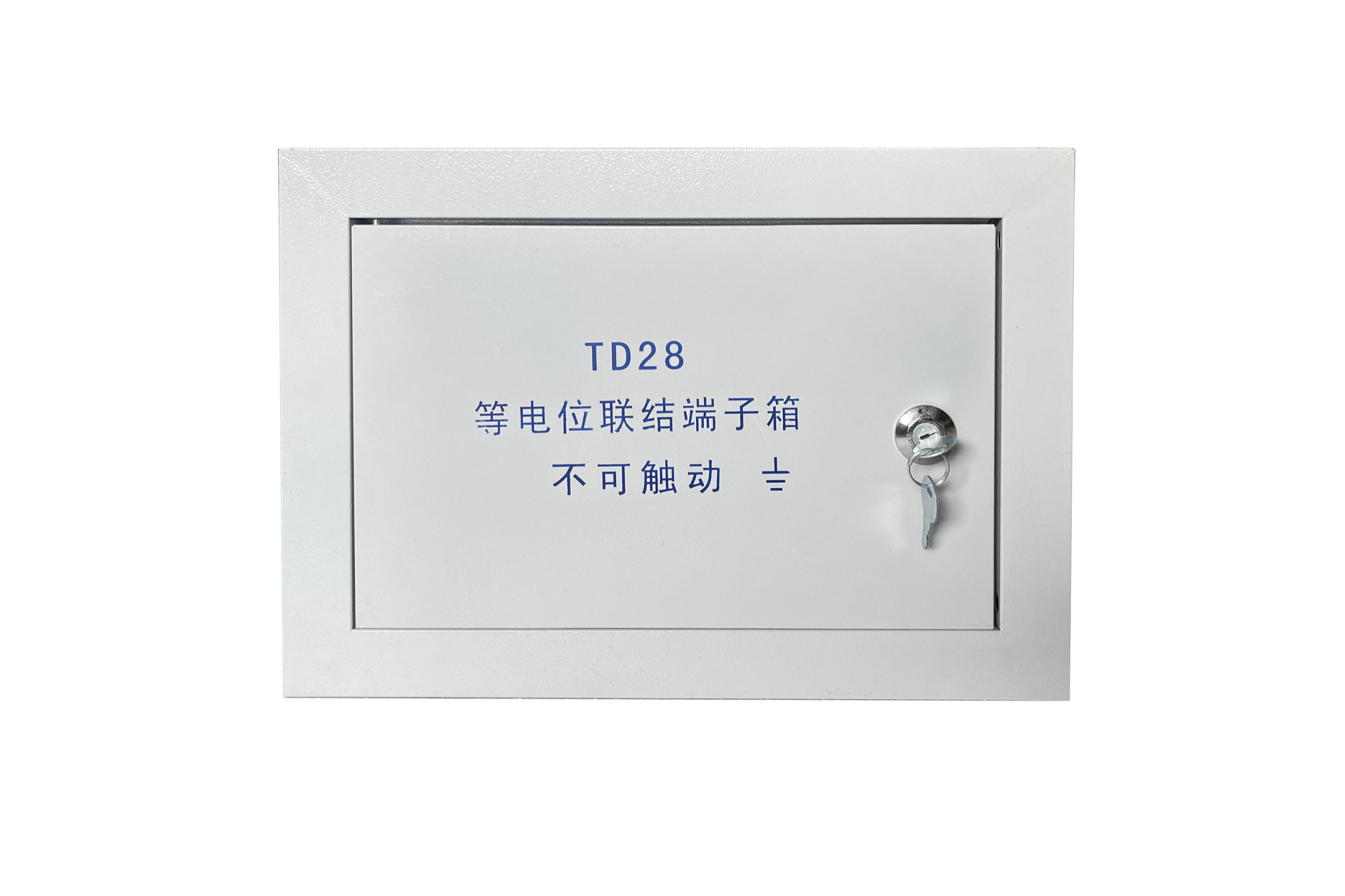

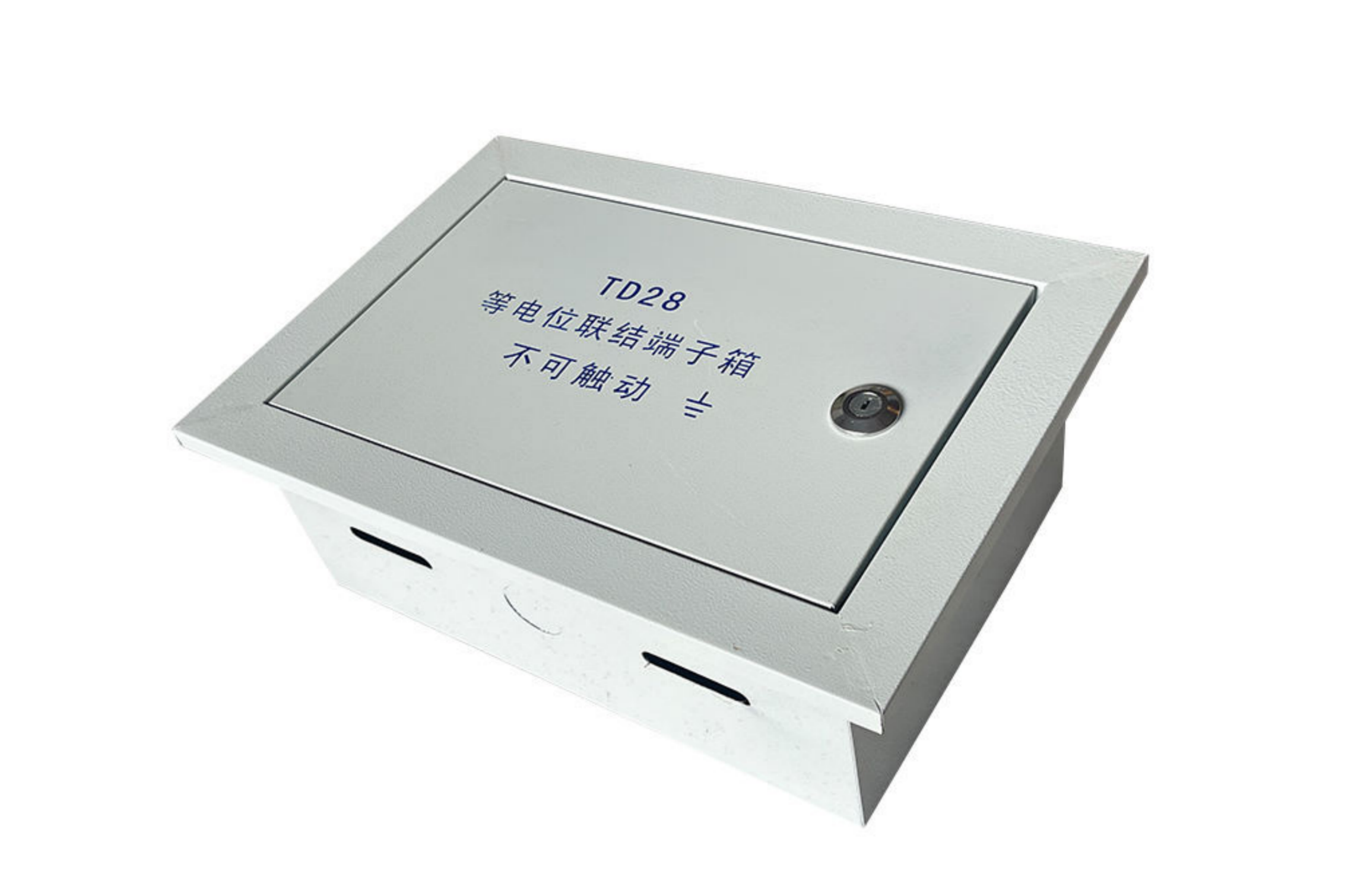

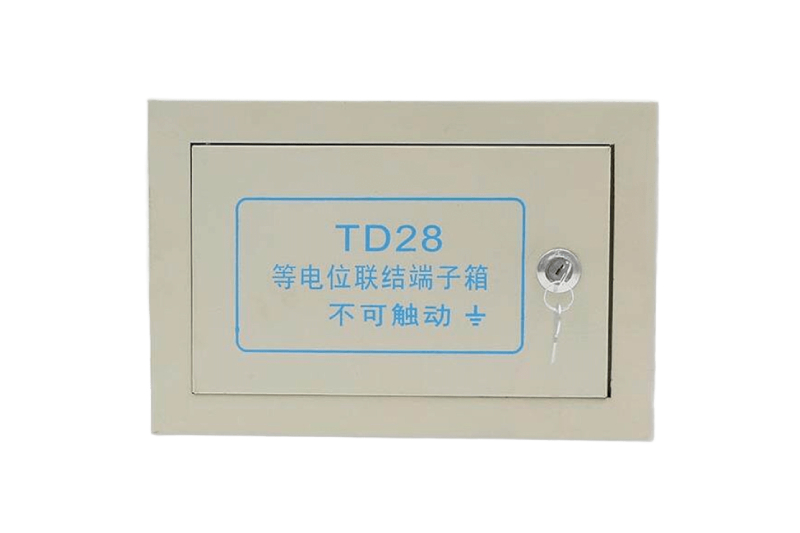

Equipotential Terminal Box | Lightning Protection Earthing Device for Construction, Industry & New Energy
The equipotential terminal box is a standardized grounding device that integrates a bus bar, insulating protective housing, marking system and auxiliary accessories. It improves the protection, integration, safety and convenience of the grounding system, and is widely used in various scenarios such as construction, industry, and new energy.
⊙ Technical Specifications
| NO. | Product Name | Model | Size(mm) | Matching Busbar |
| 1 | Power-Coated Equipotential Terminal Box | HD-JX 300*200*120 | 300*200*120 | Matching busbars (such as copper busbars, stainless steel busbars, hot-dip galvanized steel busbars) and insulated terminals |
| 2 | Stainless Steel Equipotential Terminal Box | HD-JX 300*200*120 | 300*200*120 |
⊙ Key Features
· Physical protection: The enclosed structure isolates harsh environments, avoids damage to exposed buses or performance degradation, and extends the service life of the grounding system.
· System integration: Multiple sets of busbars can be pre-installed in the box to achieve centralized line connection and avoid confusing wiring.
· Operation safety: The shell is completely insulated from the internal conductor and is equipped with clear warning signs to effectively reduce the risk of electric shock and misoperation.
· Convenient installation: On-site installation only requires fixing the box and connecting cables, which greatly improves installation efficiency.
⊙ Application Scenarios
· Building electricity: Suitable for residential, commercial and industrial buildings, it is used for equipotential grounding of power distribution and lighting systems to prevent electric shock accidents.
· Industrial equipment: Used in production lines, control cabinets and distribution boxes to achieve centralized grounding and anti-surge protection to ensure stable operation of equipment.
· New energy facilities: Suitable for photovoltaics, wind power, energy storage systems and charging piles, providing reliable ground protection for outdoor applications.
· Infrastructure: Used for substations, communication base stations, tunnels and bridges to achieve unified centralized grounding, and long-term stable and reliable performance.
